135", Raptor V3 Lite series COB All-In-One
Description
The MAXHUB Raptor Series V3 Lite COB is a complete all-in-one LED display engineered for large conference rooms, training facilities, and corporate reception spaces. Built on COB (Chip on Board) technology for superior close-viewing clarity, wider viewing angles, and enhanced durability over standard SMD panels. No racks, no external processors, no power cabinets. One power cord and it is ready to go.
COB Technology Chip on Board construction delivers superior close-viewing clarity, improved contrast, and greater surface durability compared to SMD. | 98.3% Display Area 6mm ultra-narrow bezel creates wall-to-wall immersion with virtually no visible frame. |
All-In-One. Plug and Play. Eliminates racks, power cabinets, and external processors. Wall-mount ready at just 31mm slim. | Android 13 Built-In Octa-core CPU, 8GB RAM, 64GB storage, Wi-Fi 6, and Bluetooth 5.3 for a future-ready platform. |
| Specification | 135" COB (P1.5) |
| LED Pixel Pitch | P1.5 |
| LED Technology | COB (Chip on Board) |
| Display Size | 135" |
| Display Resolution | 1920 x 1080 |
| Overall Dimensions | 3012 x 1709mm |
| Weight | 105kg |
| Installation Thickness | 62mm |

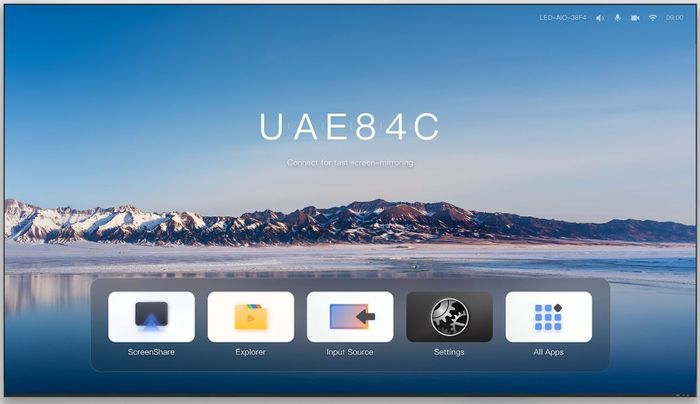

| Built-in System | Android 13 |
| CPU | Octa-core (4xA76 + 4xA55) 2.4GHz |
| RAM / Storage | 8GB / 64GB |
| Wireless | Wi-Fi 6 (2.4/5GHz) + Bluetooth 5.3 |
| Built-in Speakers | 2 x 15W |
| Brightness | 100 to 600 nits (adjustable) |
| Refresh Rate | 3840Hz |
| Contrast Ratio | 15000:1 |
| Viewing Angle | 175° (H) / 175° (V) |
| I/O (Exterior) | HDMI 2.0 x1 In, HDMI 1.4 x1 In, HDMI 2.0 x1 Out, USB 3.0 x1, USB 2.0 x1, Type-C x1, RJ45 x1, Audio Out 3.5mm x1, RS232 x1 |
| Max Power Consumption | 1.25KW |
| LED Lifespan | 100,000 hrs |
| Maintenance | Front Access |
| Installation Mode | Wall Mount / Mobile Stand |
| Operating Temperature | -10°C to 40°C |
Conference Room Large format LED for boardrooms and meeting spaces | Training Rooms Immersive visuals for education and corporate training | Corporate Reception Stunning first impressions in lobbies and reception areas |
