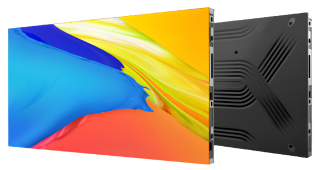

GV27 Series 2.0mm PP LED Cabinet
Description
The MAXHUB GV27 Series is a premium indoor SMD LED display cabinet designed for data visualisation, monitoring centres, command rooms, and enterprise meeting spaces. Ultra-slim at 31mm with a standardised 16:9 cabinet ratio, the GV27 tiles seamlessly into 2K, 4K, and 8K configurations with no internal wiring or screws. At just 4.8kg per cabinet with fully front access maintenance, it is built for fast installation and long-term reliability.
|
16:9 Cabinet Ratio
Standardised 610 x 343mm cabinet tiles natively into 2K, 4K, and 8K resolutions with no aspect ratio compromise and minimal processing overhead. |
Ultra-Slim and Lightweight
31mm cabinet depth at just 4.8kg per cabinet. Die-cast magnesium aluminium construction keeps wall load low across large installations. |
|
Highly Integrated Design
3-in-1 receiving card, hub board, and power supply minimises connection points and reduces failure rates. Optional 5-in-1 board with power and data redundancy available. |
Front Access Maintenance
Full front-facing maintenance with no rear clearance required. Auto-reads calibration data on power-on. No internal wiring or screws for fast servicing. |
| Specification | GV2712 | GV2715 | GV2719 | GV2725 |
| Pixel Pitch | P1.2 | P1.5 | P1.9 | P2.5 |
| LED Technology | SMD | |||
| Pixel Composition | SMD2210 | SMD1212 | SMD1515 | SMD2020 |
| Cabinet Resolution | 480 x 270 | 384 x 216 | 320 x 180 | 240 x 135 |
| Cabinet Size (W x H x D) | 610 x 343 x 31mm | |||
| Cabinet Weight | 4.8kg | |||
| Cabinet Material | Die-Cast Magnesium Aluminium | |||
| Brightness | 550 nits | |||
| Contrast Ratio | 6500:1 | |||
| Refresh Rate | 3840Hz | |||
| Viewing Angle (H/V) | 170° / 170° | |||
| Color Processing Depth | 13-bit | |||
| Max Power (W/cabinet) | 82W | 68W | 62W | 63W |
| Power Input | 100-240V 50/60Hz | |||
| LED Lifespan | 100,000 hrs | |||
| Maintenance | Front Access | |||
| Model | Pixel Pitch | Cabinet Resolution | Recommended Viewing |
| GV2712 | P1.2 | 480 x 270 | Close range, boardroom |
| GV2715 | P1.5 | 384 x 216 | Conference, command room |
| GV2719 | P1.9 | 320 x 180 | Monitoring centre, retail |
| GV2725 | P2.5 | 240 x 135 | Large venue, long viewing distance |
|
Monitoring Centre
Operations, security, and data monitoring environments
|
Command Room
Mission-critical control and situational awareness displays
|
Meeting Room
Large format data visualisation for enterprise meeting spaces
|
Pricing and cabinet quantities are based on project requirements. Contact our sales team for a custom configuration quote.
