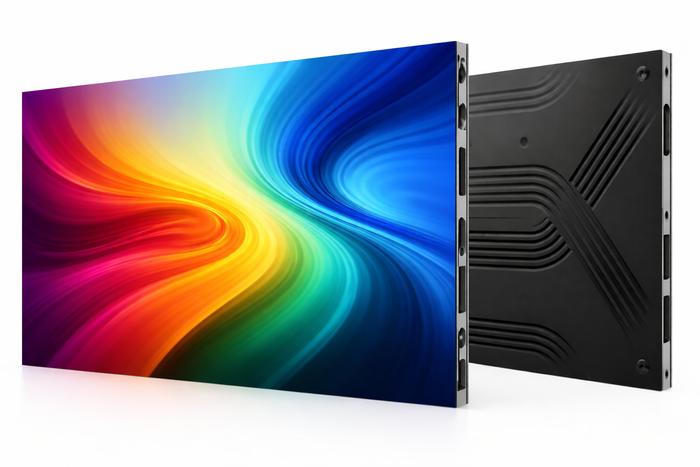

CN27 Series 1.2mm PP COB LED Cabinet
Description
The MAXHUB CN27 Series is a premium indoor COB (Chip on Board) LED display cabinet engineered for high-end commercial installations. Ultra-slim at 31mm with a magnesium aluminium cabinet weighing just 3.8kg, the CN27 delivers 15000:1 contrast, 3840Hz refresh rate, and fully front access maintenance. Designed for seamless tiling into any custom screen size with standard 16:9 multi-resolution support.
|
COB Technology
Flip-chip COB construction delivers true black levels, 15000:1 contrast, wider viewing angles, and a harder, more durable display surface than SMD. |
Ultra-Slim and Lightweight
31mm cabinet depth at just 3.8kg per cabinet. Magnesium aluminium construction keeps the wall load low across large installations. |
|
Seamless Multi-Resolution Tiling
Eccentric lock design allows fast, precise cabinet alignment. Standard 600 x 337.5mm cabinet size tiles seamlessly into 16:9 displays at any resolution from FHD to 8K. |
Front Access Maintenance
Fully front access maintenance with no rear clearance required. Mount flush to the wall for a clean, space-saving install without compromising serviceability. |
| Specification | CN27 Series |
| Series | CN27 (COB Indoor LED) |
| LED Technology | COB — 1R1G1B Flip Chip |
| Available Pixel Pitches | P0.9 (CN2709) | P1.25 (CN2712) | P1.5 (CN2715) |
| Cabinet Size (L x W x H) | 600 x 337.5 x 31mm |
| Cabinet Weight | 3.8kg ± 0.1kg |
| Cabinet Material | Magnesium Aluminium Die-Cast |
| Contrast Ratio | 15000:1 |
| Refresh Rate | 3840Hz |
| Brightness | 800 nits |
| Viewing Angle (H/V) | 165° / 165° |
| Color Processing Depth | 13-bit |
| LED Lifespan | 100,000 hrs |
| Maintenance | Fully Front Access |
| Working Temperature | -10°C to 40°C |
| Working Humidity | 10% to 80% (No Condensation) |
| Model | Pixel Pitch | Cabinet Resolution | Recommended Viewing |
| CN2709 | P0.9 | 640 x 360 | Close range, boardroom |
| CN2712 | P1.25 | 480 x 270 | Conference, showroom |
| CN2715 | P1.5 | 384 x 216 | Retail, control room |
|
Showroom
Premium retail and brand experience spaces
|
Retail Display
High-impact in-store digital signage
|
Control Centre
24/7 operations and monitoring environments
|
Conference Hall
Large audience presentation and events
|
Pricing and cabinet quantities are based on project requirements. Contact our sales team for a custom configuration quote.
